Displaying Icons in Slint An interactive guide to Lucide Slint

TL;DR

This post explores some of Lucide Slint's internals.
If you only need the tutorial or a quick reference, skip to Tutorial.

When I started building Lucide Slint, my goal was to make icons easier to use in Slint.
I initially assumed the implementation would be simple: package Lucide's SVG files and export them as image properties.

That is exactly what early Lucide Slint releases (0.1.x) did:

export global Icons {
    /// AArrowDownIcon
    out property <image> AArrowDownIcon: @image-url("icons/a-arrow-down.svg");
}

Using an icon was straightforward:

Image {
    source: Icons.AArrowDownIcon;
    colorize: #212121;
}

This approach is simple, but it comes with a few trade-offs.

Image vs. Path

At their intended size, the two approaches can look almost identical.
However, image-based icons can become blurry when they are placed at fractional physical-pixel positions, as can happen inside buttons.

Image-based icon on the left, and the path-based icon on the right

Likewise, transform-scale can make an SVG-backed Image even blurrier because current renderers apply the transform to an already rasterized image instead of rasterizing the SVG again at the transformed size.

Button {
    transform-scale: 2;
    icon: @image-url("./a-arrow-down.svg");
    colorize-icon: true;
}

See these two issues for more details:

Rendering quality was not the only reason for the change. More importantly, Path exposes properties such as stroke, stroke-width, fill, stroke-line-cap, and stroke-line-join. An Image can be recolored with colorize, but it cannot independently restyle the stroke and fill encoded in the source SVG. Path therefore lets Lucide Slint offer an API much closer to the official Lucide packages.

How Lucide Slint Works

Early Lucide Slint releases used Image, so Lucide Slint could not expose Lucide's stroke and fill controls. Once I learned more about Path, I started working on a migration.

The release generator does the following work ahead of time:

<svg viewBox="0 0 24 24">
    <circle cx="12" cy="12" r="10" />
    <path d="M 9 12 L 11 14 L 15 10" />
</svg>

export component Icon inherits Rectangle {
    Path {
        commands: Circle;
    }

    Path {
        commands: Check;
    }
}

// Slint 1.15 internal/core/graphics/path.rs

pub fn fit(&mut self, width: f32, height: f32, viewbox: Option<lyon_path::math::Box2D>) {
    if width > 0. || height > 0. {
        let viewbox =
            viewbox.unwrap_or_else(|| lyon_algorithms::aabb::bounding_box(self.iter()));
        self.transform = lyon_algorithms::fit::fit_box(
            &viewbox,
            &lyon_path::math::Box2D::from_size(lyon_path::math::Size::new(width, height)),
            lyon_algorithms::fit::FitStyle::Min,
        );
    }
}

// Lucide icon size
size = 24

// Calculate the path's offset relative to the origin
x-offset = bounds.left / size
y-offset = bounds.top / size

// Adjust the viewbox to preserve the path's size and position
viewbox-x = -x-offset
viewbox-y = -y-offset
viewbox-width = size + x-offset
viewbox-height = size + y-offset

export component Icon inherits Rectangle {
    Path {
        viewbox-x: -0.0833;
        viewbox-y: -0.0833;
        viewbox-width: 24.0833;
        viewbox-height: 24.0833;

        commands: Circle;
    }

    Path {
        viewbox-x: -0.3750;
        viewbox-y: -0.4167;
        viewbox-width: 24.3750;
        viewbox-height: 24.4167;

        commands: Check;
    }
}

// Slint 1.16 internal/core/graphics/path.rs

pub fn fit(
    &mut self,
    width: f32,
    height: f32,
    viewbox: Option<lyon_path::math::Box2D>,
    style: ImageFit,
) {
    if width > 0. || height > 0. {
        let fit_style = match style {
            ImageFit::Contain => lyon_algorithms::fit::FitStyle::Min,
            ImageFit::Cover => lyon_algorithms::fit::FitStyle::Max,
            ImageFit::Fill => lyon_algorithms::fit::FitStyle::Stretch,
            ImageFit::Preserve => return,
        };
        let viewbox =
            viewbox.unwrap_or_else(|| lyon_algorithms::aabb::bounding_box(self.iter()));
        self.transform = lyon_algorithms::fit::fit_box(
            &viewbox,
            &lyon_path::math::Box2D::from_size(lyon_path::math::Size::new(width, height)),
            fit_style,
        );
    }
}

Path {
    fit: preserve;
    commands: Circle;
}

This is how Lucide Slint exposes styling options similar to those in the official Lucide packages.

Tutorial

Now let's see how to use Lucide Slint. The repository's README provides a quick reference, while this tutorial offers more explanation and interactive examples.

Installation

At its core, installing Lucide Slint means making the generated Slint files available to your project. Every release includes lucide.slint and lucide-lab.slint.

If you do not use CMake or Cargo, download these files from the latest GitHub release and add them to your project manually.

Rust

Rust has first-class support. Lucide Slint is published on crates.io and can be added with Cargo.
Because the library must be registered with slint-build, install it as a build dependency:

cargo add lucide-slint --build

Then register lucide and lucide-lab in build.rs. Choose whether you want to include Lucide Lab:

use std::{collections::HashMap, path::PathBuf};

fn main() {
    let library = HashMap::from([
        ("lucide".to_string(), PathBuf::from(lucide_slint::lib())),
        (
            "lucide-lab".to_string(),
            PathBuf::from(lucide_slint::lib_lab()),
        ),
    ]);
    let config = slint_build::CompilerConfiguration::new().with_library_paths(library);

    slint_build::compile_with_config("ui/main.slint", config).expect("Slint build failed");
}

use std::{collections::HashMap, path::PathBuf};

fn main() {
    let library = HashMap::from([("lucide".to_string(), PathBuf::from(lucide_slint::lib()))]);
    let config = slint_build::CompilerConfiguration::new().with_library_paths(library);

    slint_build::compile_with_config("ui/main.slint", config).expect("Slint build failed");
}

The lucide_slint::lib() and lucide_slint::lib_lab() functions return the paths to the generated .slint files. Passing these paths to the compiler makes the @lucide and @lucide-lab imports available in Slint.

C++

For C++ projects, Lucide Slint release includes a CMake package named cmake.tar.gz starting from 1.32.0.

Add this to CMakeLists.txt to download Lucide Slint with FetchContent:

FetchContent_Declare(
    LucideSlint
    URL https://github.com/cnlancehu/lucide-slint/releases/latest/download/cmake.tar.gz
)

FetchContent_MakeAvailable(LucideSlint)

Then add LIBRARY_PATHS to your slint_target_sources call. Choose whether you want to include Lucide Lab:

slint_target_sources(my_application ui/app-window.slint
    LIBRARY_PATHS ${LucideSlint_LIBRARY_PATHS}
)

slint_target_sources(my_application ui/app-window.slint
    LIBRARY_PATHS ${LucideSlint_LUCIDE_LIBRARY_PATH}
)

Import Lucide Slint

In a .slint file, import the library like this:

import { IconDisplay, IconSet, Icon } from "@lucide";
import { LabIconSet } from "@lucide-lab";

If you downloaded the files manually, import from lucide.slint and lucide-lab.slint using their actual paths:

import { IconDisplay, IconSet, Icon } from "lucide.slint";
import { LabIconSet } from "lucide-lab.slint";

Here is what each item provides:

• IconDisplay: A component that accepts and displays an Icon.

• IconSet and LabIconSet: Two icon sets. IconSet contains the standard Lucide icons, while LabIconSet contains the Lucide Lab icons. Both are Slint globals:

  export global IconSet {
      out property <Icon> SlashSquare: {
          paths: [
              {
                ..path data
              }
          ],
      };
  }

  You can access an icon with an expression such as IconSet.SlashSquare.

• Icon: A struct that contains the path data for one icon. Its definition looks like this:

  export struct Icon {
      paths: [PathElem],
  }

Find an Icon

You can search for an icon on the Lucide Icons website.

To use it in Lucide Slint, follow these steps:

1. 1.

   Click an icon to open its details.
   a-arrow-down

2. 2.

   Click the button to expand the copy menu.

3. 3.

   Select Copy Component Name to get the icon's PascalCase name.
   AArrowDown

Then use its PascalCase name with IconSet:

export component Example {
    IconDisplay {
        icon: IconSet.AArrowDown;
    }
}

Display an Icon

The examples below are interactive. Their imports are hidden, but the copied code includes them.

Choose and Style an Icon

Set icon to an icon from IconSet. Then use these properties to adjust its appearance:

• stroke: Accepts a brush and sets the stroke color. Examples include transparent, red, #ffffff, red.mix(blue, 50%), and @linear-gradient().

• stroke-width: Accepts a float and sets the base stroke width.

• size: Accepts a length and sets both the width and height of the icon.

export component Example {
    IconDisplay {
        icon: IconSet.FilePlay;
        stroke: #ff9b00;
        stroke-width: 1.5;
        size: 100px;
    }
}

Fill an Icon

The stroke-fill property accepts a brush and sets the fill color. Its default value is transparent.

export component Example {
    IconDisplay {
        icon: IconSet.TreeDeciduous;
        stroke: #7faf6a;
        stroke-fill: #a1c88f;
    }
}

stroke-fill only applies to paths that were not already filled in the source SVG, and it is visible only when a path encloses an area. Some icons may not look good when filled.

Control Stroke Scaling

Absolute stroke width controls whether the stroke scales with the icon. The two icons below share the same size and stroke-width; only absolute-stroke-width differs. Adjust either value to compare them.

When absolute-stroke-width is false, the stroke width scales with size. This keeps the stroke and icon proportions the same:

calculated-stroke-width: size / 24 * stroke-width

When absolute-stroke-width is true, the stroke no longer scales with the icon. The value of stroke-width is used directly in logical pixels:

calculated-stroke-width: stroke-width * 1px

Use the playground below to try the property.

export component Example {
    IconDisplay {
        icon: IconSet.Search;
        size: 100px;
        stroke-width: 2;
        absolute-stroke-width: false;
    }
}

Tips

Beyond these properties, a few patterns can make Lucide Slint easier to use.

Reuse a Custom Icon Style

When several icons share the same custom style, inherit from IconDisplay to make that style the default:

import { IconDisplay, IconSet } from "@lucide";

export component MyIconDisplay inherits IconDisplay {
    stroke: #8e8cd8;
    stroke-width: 1.5;

    animate stroke, stroke-fill {
        duration: 300ms;
        easing: ease-in-out;
    }
}

export component Example {
    VerticalLayout {
        MyIconDisplay {
            icon: IconSet.NotebookPen;
        }

        MyIconDisplay {
            icon: IconSet.LampDesk;
        }
    }
}

Use Icons in Components

When a component accepts an image as an optional property, it can check the image's dimensions to tell whether the caller provided one. This lets the component create an Image only when there is something to display:

export component ImageButton {
    in property <image> icon;

    if (root.icon.width > 0 && root.icon.height > 0): Image {
        source: root.icon;
    }
}

Lucide Slint's Icon supports a similar check. An empty Icon has no paths, so you can check paths.length and create an IconDisplay only when the caller provided an icon:

import { IconDisplay, Icon } from "@lucide";

export component IconButton {
    in property <Icon> icon;

    if (root.icon.paths.length > 0): IconDisplay {
        icon: root.icon;
    }
}

Configure Your IDE

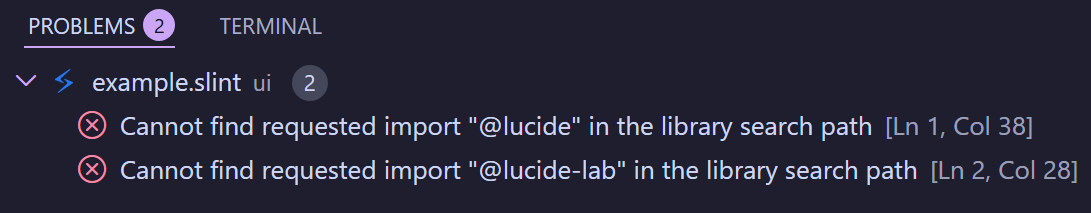

When using an IDE with the Slint plugin or slint-lsp, you may see these errors:

These errors appear because slint-lsp does not share the library-path configuration from your project's build.rs. Your application may compile successfully while the language server still cannot resolve @lucide and @lucide-lab.

You must configure the same library paths separately for slint-lsp. With Cargo, this is awkward because registry paths include versioned directories.

You can get the files in either of these ways:

• Download the .slint files manually and store them in a stable location on your computer.

• Find the installed Lucide Slint crate under .cargo/registry/src/index.crates.io-xxx/lucide-slint-xxx/.

Then add these settings to your VS Code settings.json:

{
    "slint.libraryPaths": {
        "lucide": "path/to/lucide.slint",
        "lucide-lab": "path/to/lucide-lab.slint"
    }
}

If you use a JetBrains IDE with the Slint plugin, open Settings > Languages & Frameworks > Slint.

Add the following to Args. These arguments will be passed to slint-lsp:

-L lucide=path/to/lucide.slint -L lucide-lab=path/to/lucide-lab.slint

You usually do not need to update the files used by slint-lsp for every Lucide Slint release. Most releases update the icon set, while major library changes are less frequent.

When Image Is the Better Choice

A Lucide Slint Icon contains path data, not a Slint image. It cannot be used as the source of an Image, and Lucide Slint is not designed to convert it into one.

Some features eventually pass their icon to a system API that requires bitmap data. SystemTrayIcon is one example. A Slint image is the right choice in these cases, and its source can be a bitmap or SVG. If the target size is known, providing a bitmap at that size avoids rasterizing an SVG at runtime. Tray icons are small, so a correctly sized bitmap will usually stay sharp.

The following issue shows this mismatch in practice. Its author wanted ContextMenuArea to accept path data so that a custom menu would not be necessary. However, its menu icons ultimately use the fixed image type. The request was closed as not planned:

Many Slint components use image properties, so making all of them accept Path data is not realistic. If you need Lucide icons, create your own component or copy and adapt an existing implementation. Slint's internal Fluent widgets and Material components are useful references. In your version, replace the image properties with Icon properties and the Image elements with IconDisplay.

This takes a little extra work, but it is worth it.

That's all for today! This was a long post, and it took me about a week to write. I plan to keep it updated as Lucide Slint evolves. Thanks for reading!

Bonus: A playground for every property!

export component Example {
    IconDisplay {
        icon: IconSet.Star;
        size: 100px;
        stroke: #ff9b00;
        stroke-fill: transparent;
        stroke-width: 1.5;
        absolute-stroke-width: false;
    }
}
